Reporting and Metrics
Player Reporting and Metrics

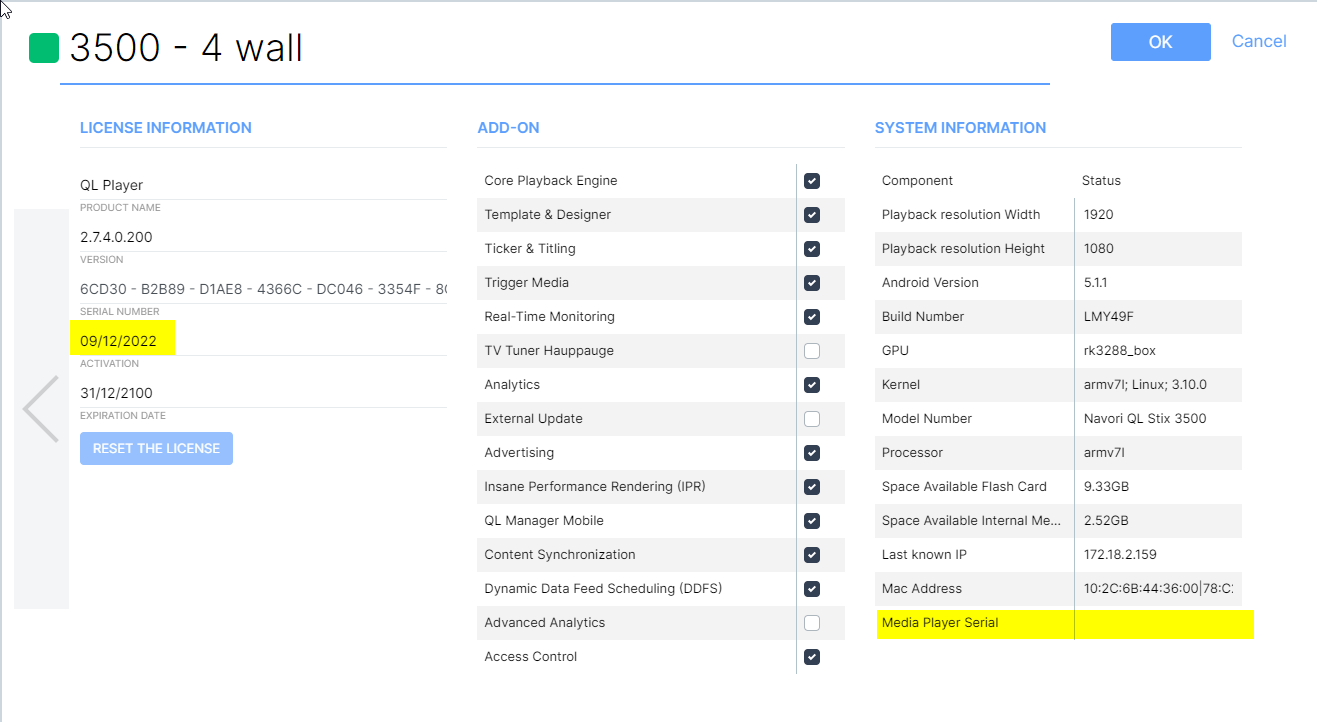

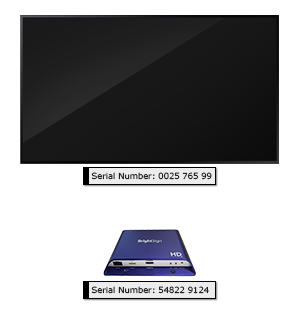

Hardware and Serial Numbers

  • Media Player Serial Numbers
    •
  • Display Serial Numbers
    •
  • Warranty Expiration
    •
  • Player Operating System
    •
  • Player Diagnostics
    •
  • Display On/Off
    •
  • Player Software Update
    •
  • Player Rebooted
    •
  • Player Reset
    •
  • Player Back Online
    •

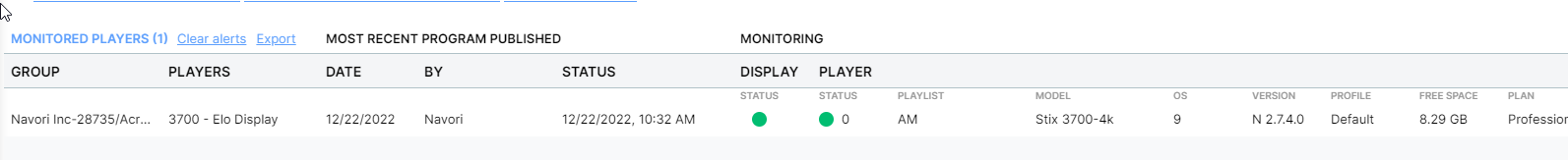

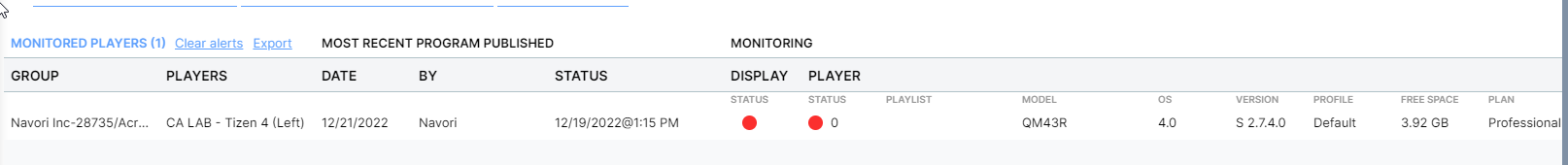

Online vs. Offline Players

  • Date Player Activated
    •
  • CMS Subscription & Expiration Date
    •
  • Last Player Ping
    •
Content

  • Current Playlist
    •
  • Last Content Update
    •
  • Screenshot of Current Content Playing
    •
  • Quantity of image/video plays per time period
    •

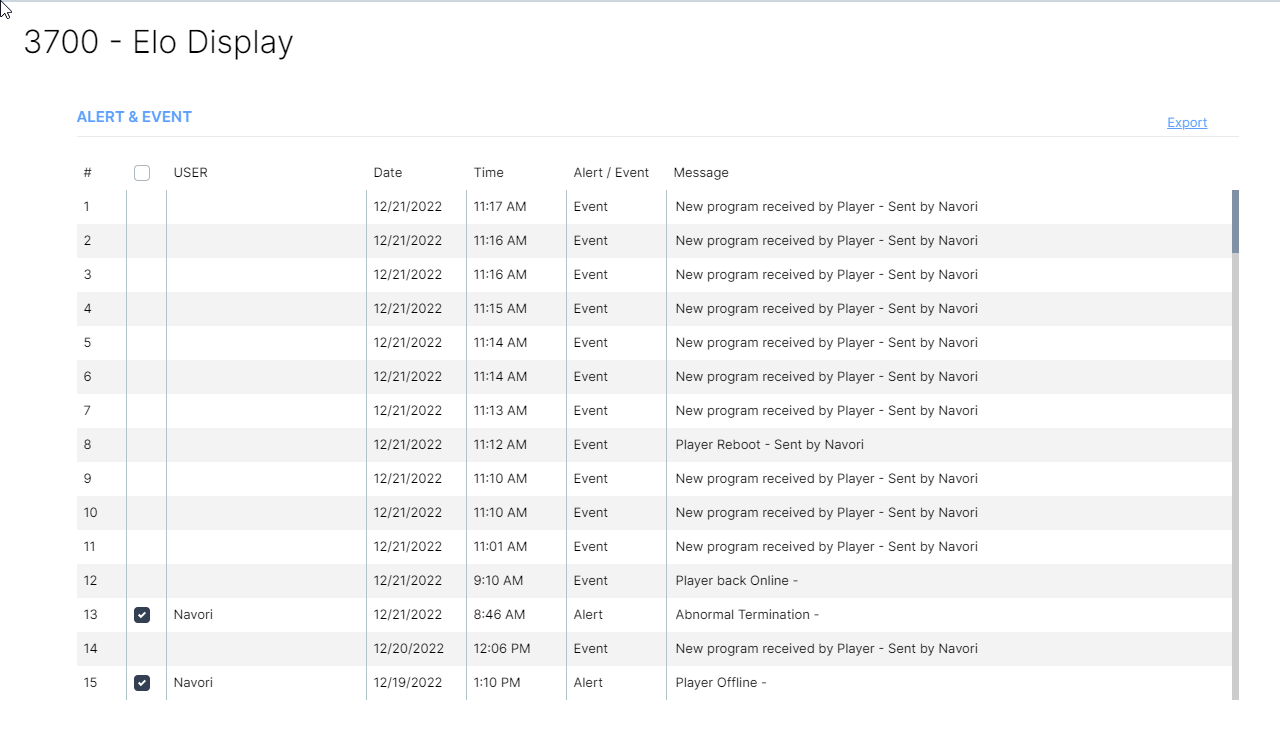

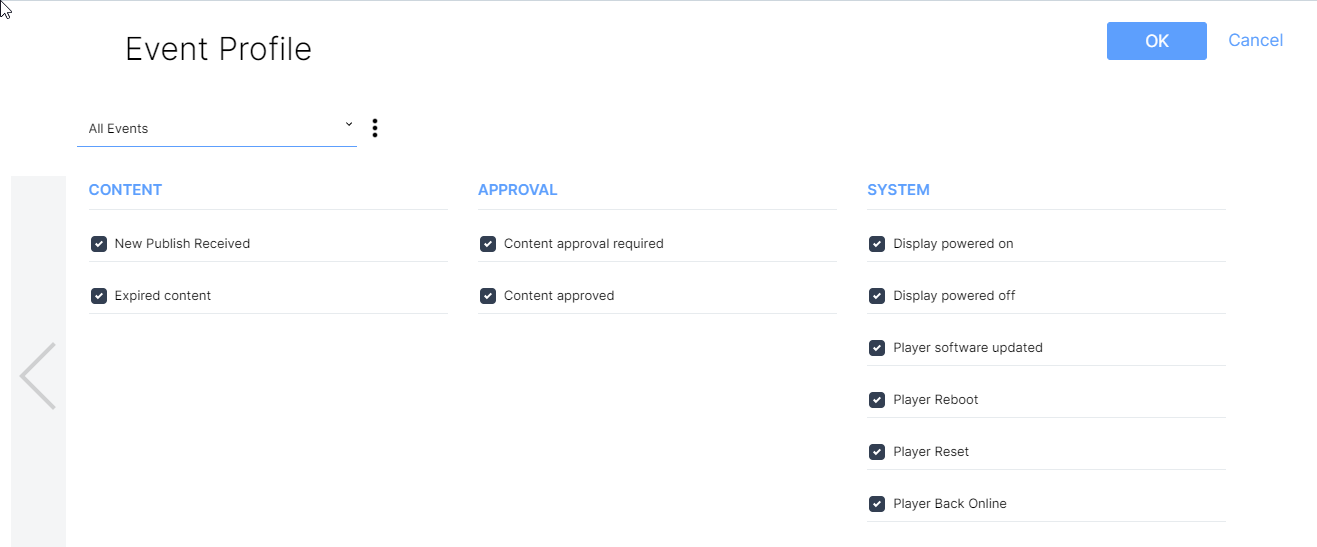

Events

  • New PublishReceived
    •
  • Expired Content
    •
  • Content Approval Required
    •
  • Content Approved
    •
List of Player Properties
NAME
Description
Activation Date
When the player license was activated
Active
Status of the Player - whether the player license is active or inactive.
Address
Physical Address of the Player
Alert Count
How many alerts are on the player
Aquaji URL
Aquaji URL to collate analytics from Aquaji and Navori QL
City
City of the Player
Company
Company name of the Player
Contact
Contact of the Player
Country
Country of the Player
Diagnostic
Diagnostic logs from player properties
Display Status
Display is on or off
Expiration Date
Expiration date of player license
Free Space
How many free space is available on the hardware
Group ID
Identity of the Group
Group Name
The name the player is located under.
Group Path
Set-only field, that will put the Player in the entered path (and will also create the groups in path if needed)
ID
Identity
Last Known IP
Last known IP address of the Media Player
Last Notify
Last time the player was able to ping back to the server. This will appear if the player is offline
MAC Address
MAC address of the hardware
Media Player Serial
Media Player Serial of the Player, editable field for your own hardware serial number
Mobile
Phone number for the location of the Player
Model
Hardware model name/number
Name
Name of the Player
OS
Hardware Operating Sytem
Plan
Which license plan, Professional or Essential
Playback Resolution Height
Playback resolution Height
Playback Resolution Width
Playback resolution Width
Player Add On List
Navori QL API gives you the ability to create custom interfaces that match your exact needs, both from a server/client side aspect

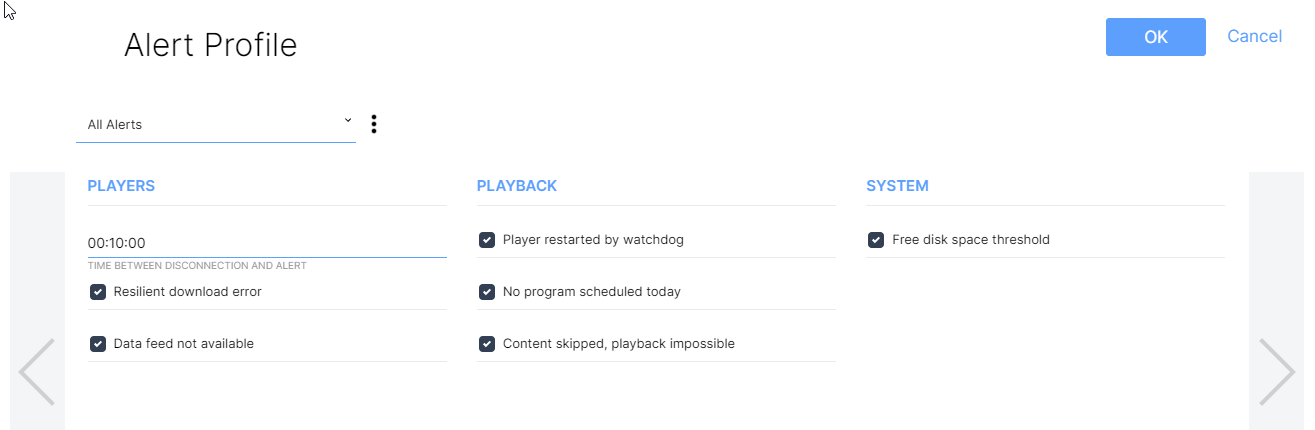

Player Alert List
List of PlayerAlert
Please reference https://na.navori.com/navoriservice/apidocumentation/#GetPlayersById
Player Display Control List
List of PlayerDisplayControl
Please reference https://na.navori.com/navoriservice/apidocumentation/#GetPlayersById
Player Event List
List of PlayerEvent
Please reference https://na.navori.com/navoriservice/apidocumentation/#GetPlayersById
Player Info List
List of PlayerInfo
Please reference https://na.navori.com/navoriservice/apidocumentation/#GetPlayersById
Player Specific Content List
List of PlayerSpecificContent
Please reference https://na.navori.com/navoriservice/apidocumentation/#GetPlayersById
Player Tag List
List of PlayerTag
Please reference https://na.navori.com/navoriservice/apidocumentation/#GetPlayersById
Player Variable List
List of PlayerVariable
Please reference: https://na.navori.com/navoriservice/apidocumentation/#GetPlayersById
Playlist Name
Name of playlist playing
Profile Name
Name of Technical profile assigned to Player
Published By
Name of person to send a publish to a player
Published Date
The date and time of the publish to the player
Published Status
Publish set to done
RS232 Message
RS323 message if applicable to hardware
Serial Number
Serial Number of the Player
State
State of the Player
Technical Profile ID
Identity of the Player profile
Telephone
Telephone of the Player
Time Zone
Time zone of the Player
Trigger Add on
Have trigger add-on (0; 1;)
Version
Navori player version
Zip
Zip code of the Player
A Look Into the Future:
